Kotlin Android XML Parsing using SAX Parser

XML document is commonly used to share the data on the internet. The data provided in the XML format are able to update frequently and parsing them is a common task for network-based apps.
In Android, there are three types of XML parsers to parse the XML data and read them in android applications, these are:

DOM Parser
SAX Parser
XMLPullParser

In Android, SAX (Simple API for XML) is widely used API for XML parsing. The SAX parser will examines an XML document, character by character and translates it into a series of events such as startElement(), endElement() and characters(). To read and parse the XML data using SAX parser, we need to create an instance of SAXParserFactory, SAXParser and DefaultHandler objects in android applications.

Example of XML Parsing using SAX Parser

In this example, we will parse the XML data using SAX parser and display them into ListView.

activity_main.xml

Add the ListView in the activity_main.xml layout.

< ?xml version="1.0" encoding="utf-8"?>
< android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context="example.javatpoint.com.kotlinxmlparsingusingsaxparser.MainActivity">

   < ListView
        android:id="@+id/listView"
        android:layout_width="match_parent"
        android:layout_height="match_parent">
    < /ListView>

< /android.support.constraint.ConstraintLayout>

empdetail.xml

Create the XML document empdetail.xml in assets directory to parse the data using SAX parser.

< ?xml version="1.0" encoding="utf-8"?>
< records>
    < employee>
        < name>Sachin Kumar< /name>
        < salary>50000< /salary>
        < designation>Developer< /designation>
    < /employee>
    < employee>
        < name>Rahul Kumar< /name>
        < salary>60000< /salary>
        < designation>Team Leader< /designation>
    < /employee>
    < employee>
        < name>John Mike< /name>
        < salary>70000< /salary>
        < designation>Manager< /designation>
    < /employee>
    < employee>
        < name>Ajay Kumar< /name>
        < salary>45000< /salary>
        < designation>Developer< /designation>
    < /employee>
    < employee>
        < name>Toni Nayer< /name>
        < salary>55000< /salary>
        < designation>Marketing< /designation>
    < /employee>
    < employee>
        < name>Mr Bony< /name>
        < salary>42000< /salary>
        < designation>Sales< /designation>
    < /employee>
    < employee>
        < name>Raj Kumar< /name>
        < salary>30000< /salary>
        < designation>Production< /designation>
    < /employee>
    < employee>
        < name>Rahul Kumar< /name>
        < salary>60000< /salary>
        < designation>Team Leader< /designation>
    < /employee>
    < employee>
        < name>John Mike< /name>
        < salary>70000< /salary>
        < designation>Manager< /designation>
    < /employee>
    < employee>
        < name>Sachin Kumar< /name>
        < salary>50000< /salary>
        < designation>Developer< /designation>
    < /employee>
    < employee>
        < name>Rahul Kumar< /name>
        < salary>60000< /salary>
        < designation>Team Leader< /designation>
    < /employee>
    < employee>
        < name>John Mike< /name>
        < salary>70000< /salary>
        < designation>Manager< /designation>
    < /employee>
< /records>

custom_list.xml

Create a custom layout to display the list of data into ListView.

< ?xml version="1.0" encoding="utf-8"?>
< LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="horizontal">
        < LinearLayout
            android:layout_width="match_parent"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:orientation="vertical">

            < TextView
                android:id="@+id/name"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="name"
                android:textStyle="bold"
                android:layout_marginLeft="15dp"
                android:layout_marginStart="15dp"
                android:textAppearance="@style/Base.TextAppearance.AppCompat.Medium" />

            < TextView
                android:id="@+id/salary"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="salary"
                android:layout_marginLeft="15dp"
                android:layout_marginStart="15dp"
                android:layout_marginTop="5dp"
                android:textSize="16sp"/>
            < TextView
                android:id="@+id/designation"
                android:layout_width="match_parent"
                android:layout_height="wrap_content"
                android:text="designation"
                android:layout_marginLeft="15dp"
                android:layout_marginStart="15dp"
                android:layout_marginTop="5dp"
                android:textSize="16sp"/>
        < /LinearLayout>
< /LinearLayout>

MainActivity.kt

Add the following code to read and parse the XML data using SAX parser. Create the instance of SAXParserFactory, SAXParser and DefaultHandler objects.
The HashMap< String, String> is used to read the data from XML document and add them into ArrayList().

package example.javatpoint.com.kotlinxmlparsingusingsaxparser

import android.support.v7.app.AppCompatActivity
import android.os.Bundle
import org.xml.sax.helpers.DefaultHandler
import javax.xml.parsers.SAXParserFactory
import android.widget.ListView
import android.widget.SimpleAdapter
import org.xml.sax.SAXException
import java.io.IOException
import java.util.ArrayList
import java.util.HashMap
import javax.xml.parsers.ParserConfigurationException
import javax.xml.parsers.SAXParser

class MainActivity : AppCompatActivity() {
    internal var empList = ArrayList< HashMap>()
    internal var empData = HashMap< String, String>()
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)
        val lv:ListView = findViewById(R.id.listView)
        try {
                        //instancing the SAXParserFactory class
            val parserFactory:SAXParserFactory = SAXParserFactory.newInstance()
            //instancing the SAXParser class
            val saxParser:SAXParser = parserFactory.newSAXParser()
            val defaultHandler= object : DefaultHandler() {
                var currentValue = ""
                var currentElement = false
                //overriding the startElement() method of DefaultHandler
                override fun startElement(uri: String, localName: String, qName: String, attributes: org.xml.sax.Attributes) {
                    currentElement = true
                    currentValue = ""
                    if (localName == "employee") {
                        empData = HashMap()
                    }
                }
                //overriding the endElement() method of DefaultHandler
                override fun endElement(uri: String, localName: String, qName: String) {
                    currentElement = false
                    if (localName.equals("name", ignoreCase = true))
                        empData["name"] = currentValue
                    else if (localName.equals("salary", ignoreCase = true))
                        empData["salary"] = currentValue
                    else if (localName.equals("designation", ignoreCase = true))
                        empData["designation"] = currentValue
                    else if (localName.equals("employee", ignoreCase = true))
                        empList.add(empData)
                }
                //overriding the characters() method of DefaultHandler
                override fun characters(ch: CharArray, start: Int, length: Int) {
                    if (currentElement) {
                        currentValue = currentValue + String(ch, start, length)
                    }
                }
            }
            val istream = assets.open("empdetail.xml")
            saxParser.parse(istream, defaultHandler)
            //creating Adapter class to access the custom list
            val adapter = SimpleAdapter(this@MainActivity, empList, R.layout.custom_list, arrayOf("name", "salary", "designation"), intArrayOf(R.id.name, R.id.salary, R.id.designation))
            lv.adapter = adapter
        } catch (e: IOException) {
            e.printStackTrace()
        } catch (e: ParserConfigurationException) {
            e.printStackTrace()
        } catch (e: SAXException) {
            e.printStackTrace()
        }

    }
}

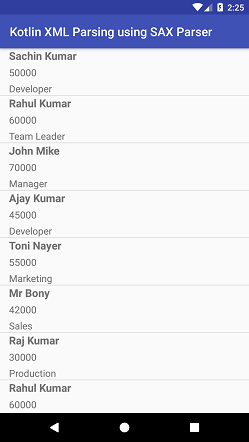

Output:
